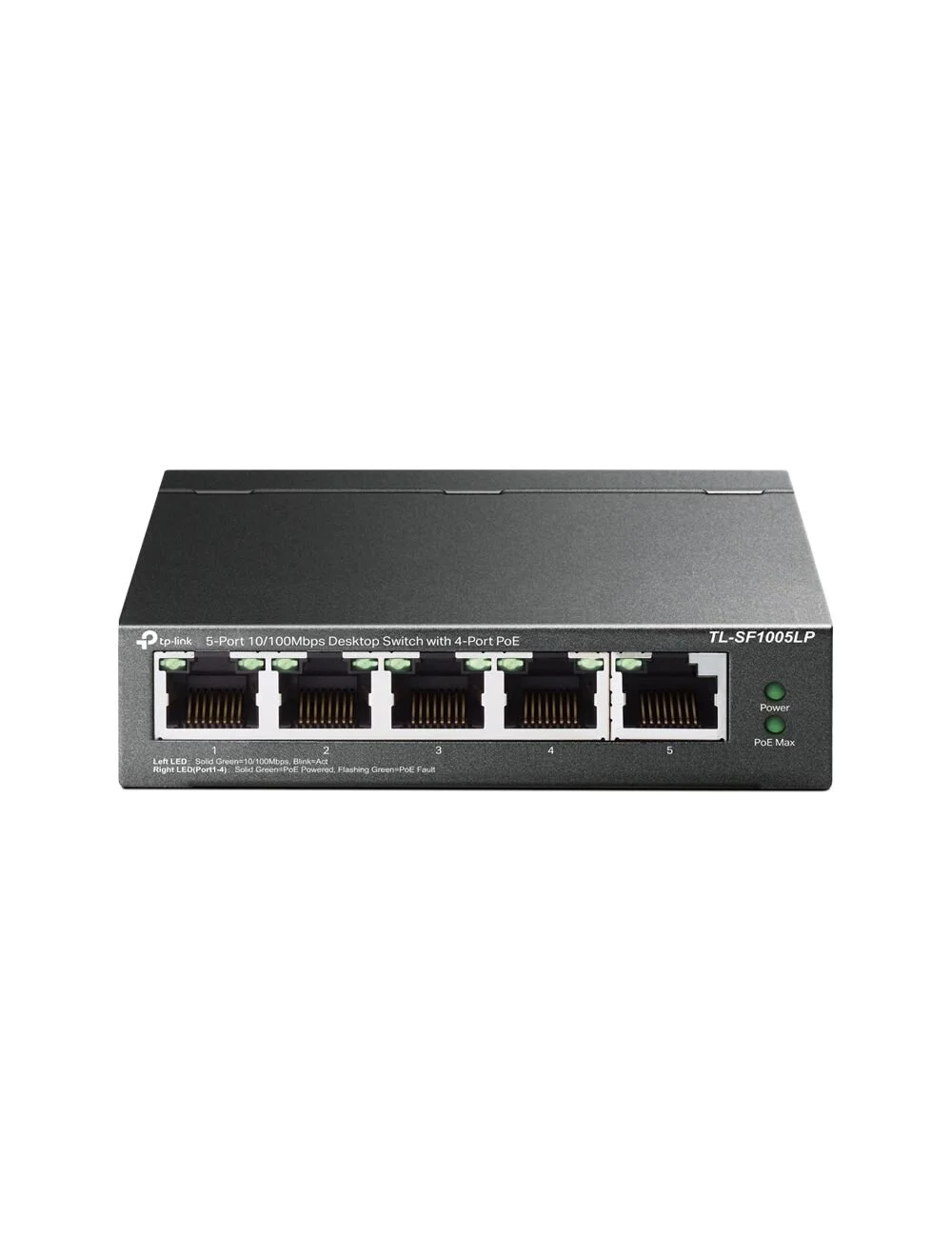

5 Port Network PoE Switch (10/100Mbps, 4 PoE Ports)

DESCRIPTION of 5 Port PoE Network Switch

• Desktop 5 Port PoE Network Switch

• 5x 10/100Mbps Ethernet Ports

• 4x PoE Ports, Transfers Data & Power on Single Cable

• IEEE 802.3at/af PoE Compliant

• Standard & Protocol

  • IEEE 802.3 10Base-T

  • IEEE 802.3u 100Base-TX

  • IEEE 802.3af/at Power Over Ethernet (PoE)

  • IEEE 802.3x Flow Control

• Interface

  • 4x100M ports PoE (Auto-negotiation,Auto MDIX)

  • Port 5 is a 10/100Mbps Uplink Port

• Power Supply Output: 48Vdc ~ 1A

• LED Indicators: Power, PoE

• Environmental

  • Operating Temperature: -20 - 55°C

  • Operating Humidity: 10 - 90%,Non-Condensing

• Dimensions (LxWxH): 110 x 69 x 26mm

• Certification: FCC, CE & RoHS

• CC 85389000 0.2kg Y

USES of 5 Port PoE Network Switch

• Specifically used to transmit power & data to the likes of access points, IP CCTV cameras, IP phones, etc...

ADVANTAGES of 5 Port PoE Network Switch

• Is compatible with 10/100 networks

• 5 Ports (4 PoE) will suffice most small networks or IP camera setups

• It is an unmanaged network switch, which is handier

• This PoE switch has a priority function which will help protect the system when the system power is overloaded

• If all PoE PDs (Powered Devices) power consumption is maxed out, a priority will be arranged among the PoE ports

• Then the system will cut off the power of the lowest-priority port

• Priority (Port 1 = Port 2 = Port 3 > Port 4)

• This function will help to ensure the normal operation of the system

DISADVANTAGES of 5 Port PoE Network Switch

• 5 ports may not be enough for larger jobs

• PoE switches are more expensive than non-PoE network switches

• 10/100Mbps PoE switch will not work at 1000Mbps on gigabit networks
